ASM STRETCHMET CEILING
AS INDOOR SUSPENDED CEILING
FOR VARIOUS BUILDINGS
WITH PARTICULAR AESTHETIC EFFECTS
STRECHMET Expanded Metal Ceiling
- For Exclusive Ceiling Design

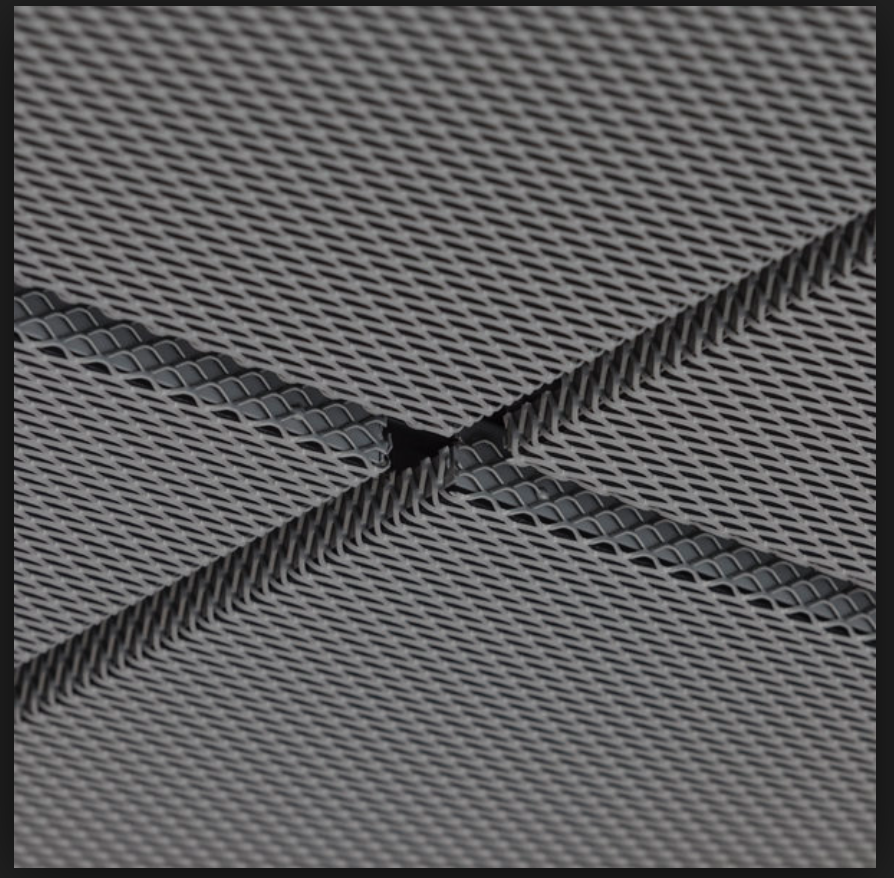

Today, it is difficult to imagine offices and commercial premises without suspended ceilings. The production process of expanded metal endows the expanded metal ceiling with a special character which offers, according to the customer’s requirements, a free or restricted view into the roof cavity. A further advantage is the possibility to optimally illuminate the space under the expanded metal ceiling through, for example, the deflection of artificial or natural light. Interesting variations in light design can be generated when the lights are installed above the lattice construction. The diverse surface structures of our inexhaustible spectrum of mesh variations enable the creation of an unusual ambience. Whether rhombus or square mesh, open or closed system, our wide spectrum bestows an individual appearance upon your premises.
* Available in steel and aluminium
* Surface powder-coated in colour similar to RAL9010 and 9006-metallic
* Other colours available on request

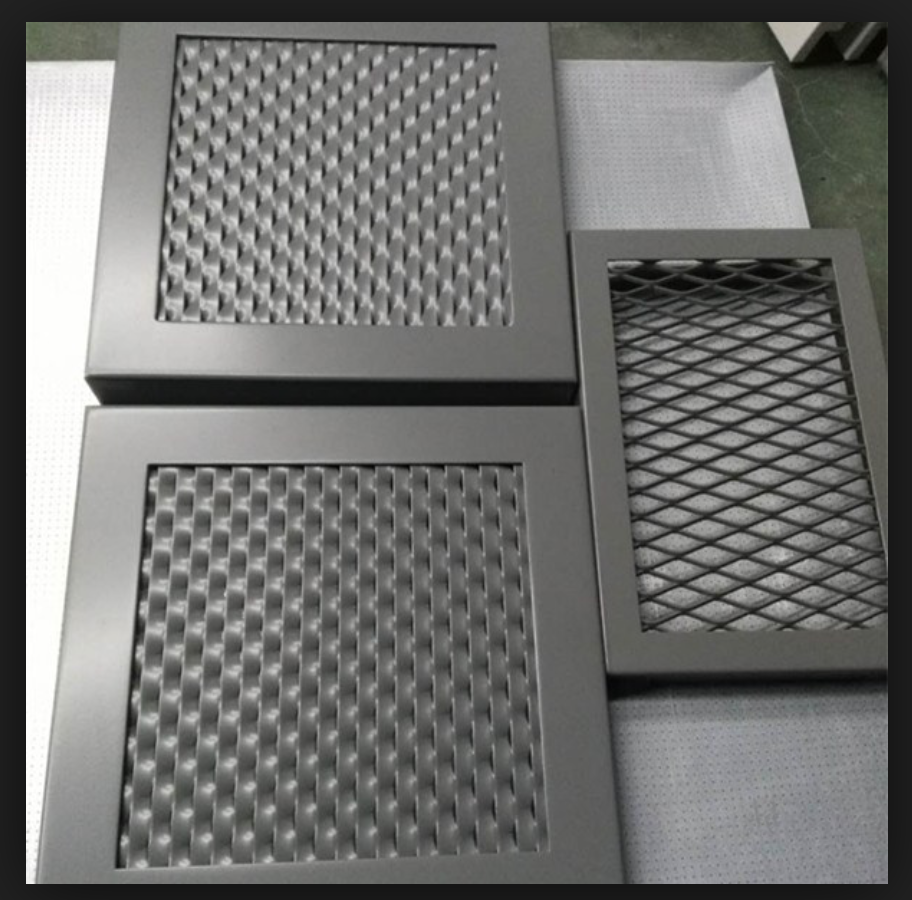

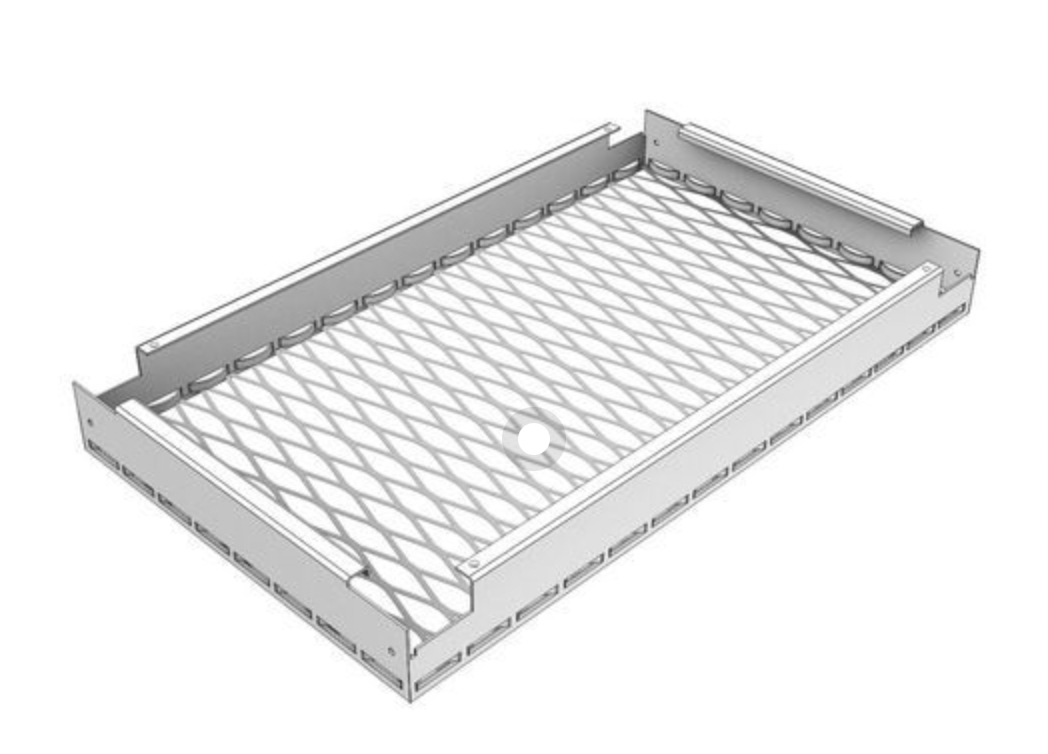

* Edged with welded lengthwise trusses or plates, inserted and spot-welded in a frame construction.
The substructure/support systems
* Clamping system
* Hooking-in system
* Grid system (only rectangular metal panels)
* All standard wall connection profiles and wall angles with “integrated fluted moulding”
Asian Streck Metals can provide expanded metal ceilingswith mesh in the standard sizes 250mm x 250mm, 600mm x 600mm, 600mm x 1200mm or can also study alternative and innovative solutions to give your environment a modern and completely original look.
CEILING
Expanded metal now is frequently used in modern residential or commercial construction. It is more stronger than the equivalent weight of wire mesh. From the perspective of its structure, expanded metal ceiling allow flow through of air and light. In the aspect of operation, expanded metal ceiling consists of sheet so that it is convenient to remove the sheet when you need to.
DURABLE SUSPENDED EXPANDED MESH CEILING

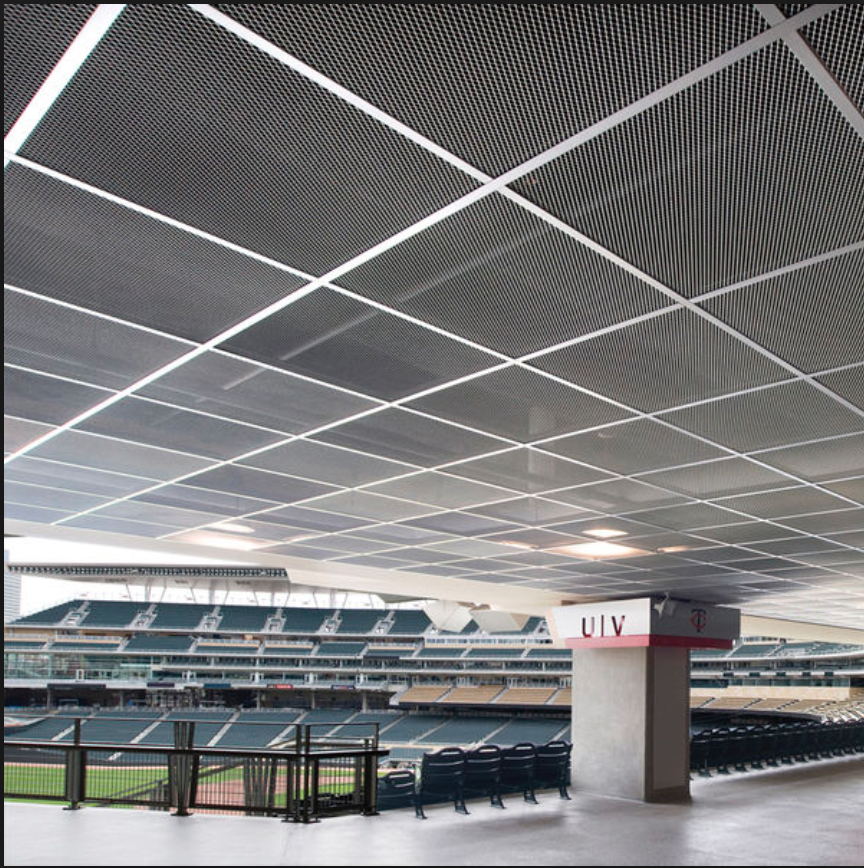

Expanded metal ceiling are suitable for a large scale of ceiling construction. Here, expanded metal sheets serve as suspended ceiling for protruding eave (the part of a roof that meets or overhangs the walls of a building). In this way, one can make the building more concise and comfortable. Additionally, in modern architecture, expanded metal has been used building exterior facade or screen.

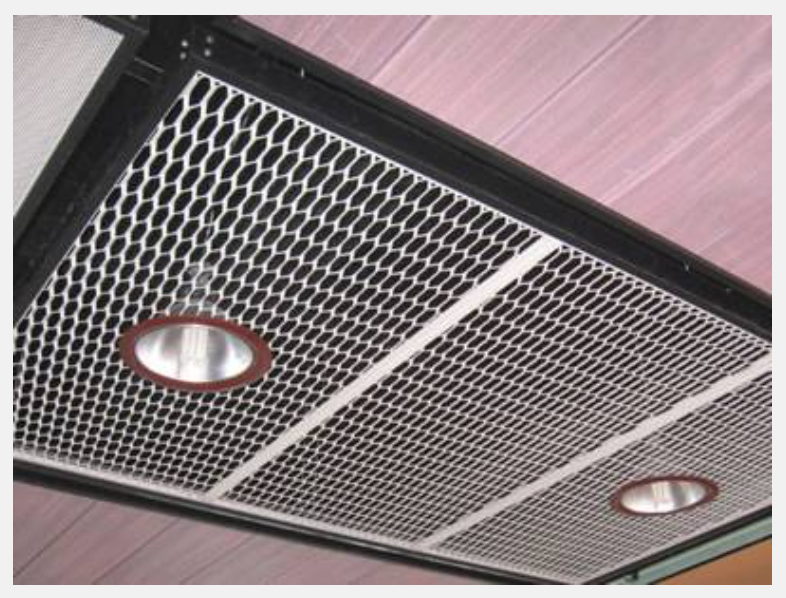

Expanded metal ceiling sheet is suspended from structural elements above. The expanded metal sheets jointed one by one on the overhead, allowing adding extra metallic framework nearby. This expanded metal ceiling is able to conceal ductwork, wiring, fire sprinkler and so on. For long-term use, the surface commonly coated with zinc, powder, film etc.
Asian Streck Metals offer architects an array of Expanded Mesh Ceiling pattern that complements contemporary design freedom. With these versatile materials, it is easy to create an optical contrast to other surrounding materials. The wide choice of patterns, materials and colours gives every project a unique appearance.
ASM Stretchmet Ceiling
Striking Visual Effects | Superior Performance | Timeless Design
ASM Stretchmet Ceiling systems are versatile architectural materials that deliver striking visual impact while meeting modern performance requirements. Unique ceiling designs can be achieved through variations in mesh types, mesh orientation, lighting integration, and colour finishes.
Aesthetic Design
Creating distinctive ceiling environments is simple with Stretchmet systems:
-
Ceiling openness depends on mesh size and pattern
-

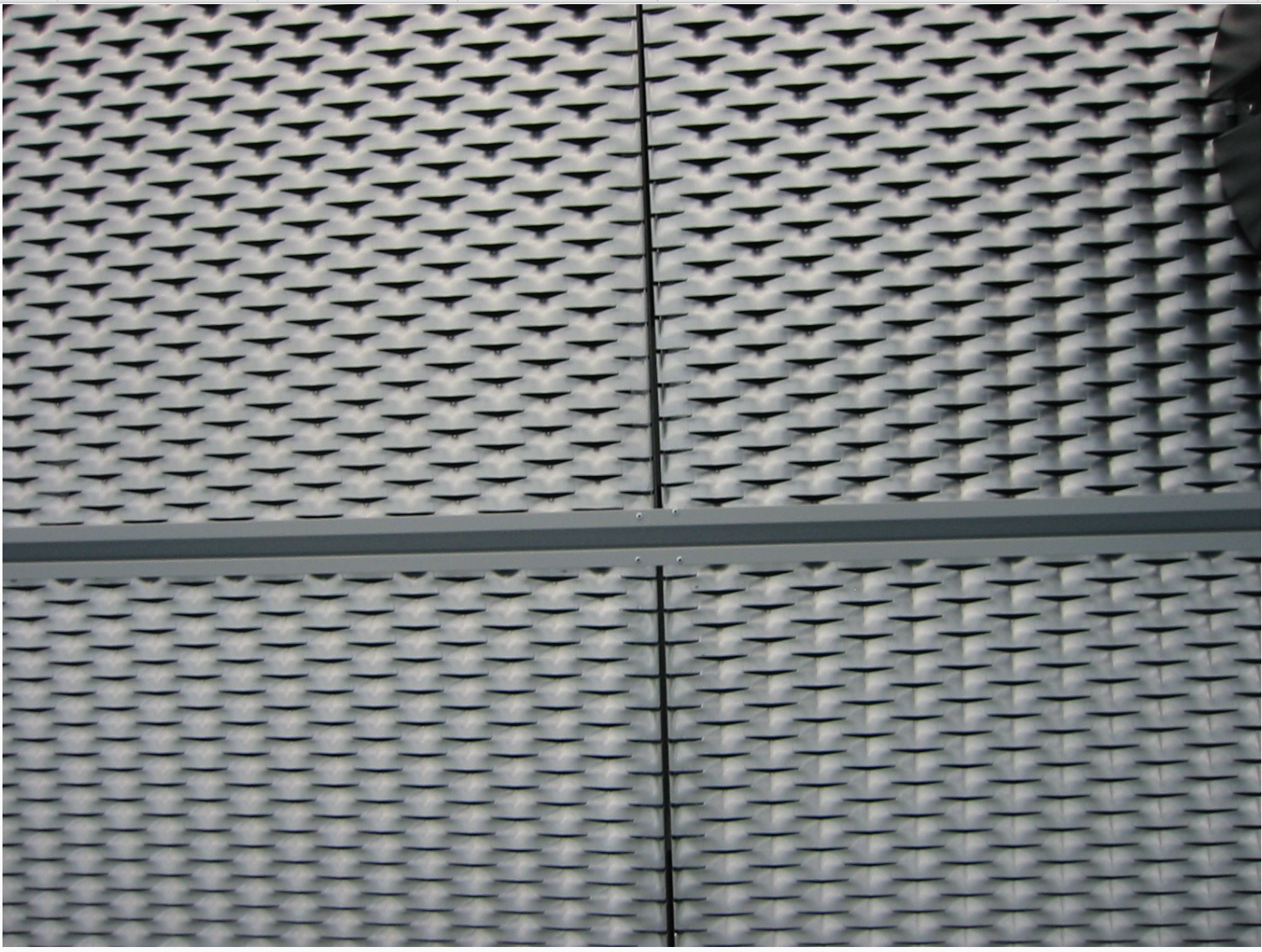

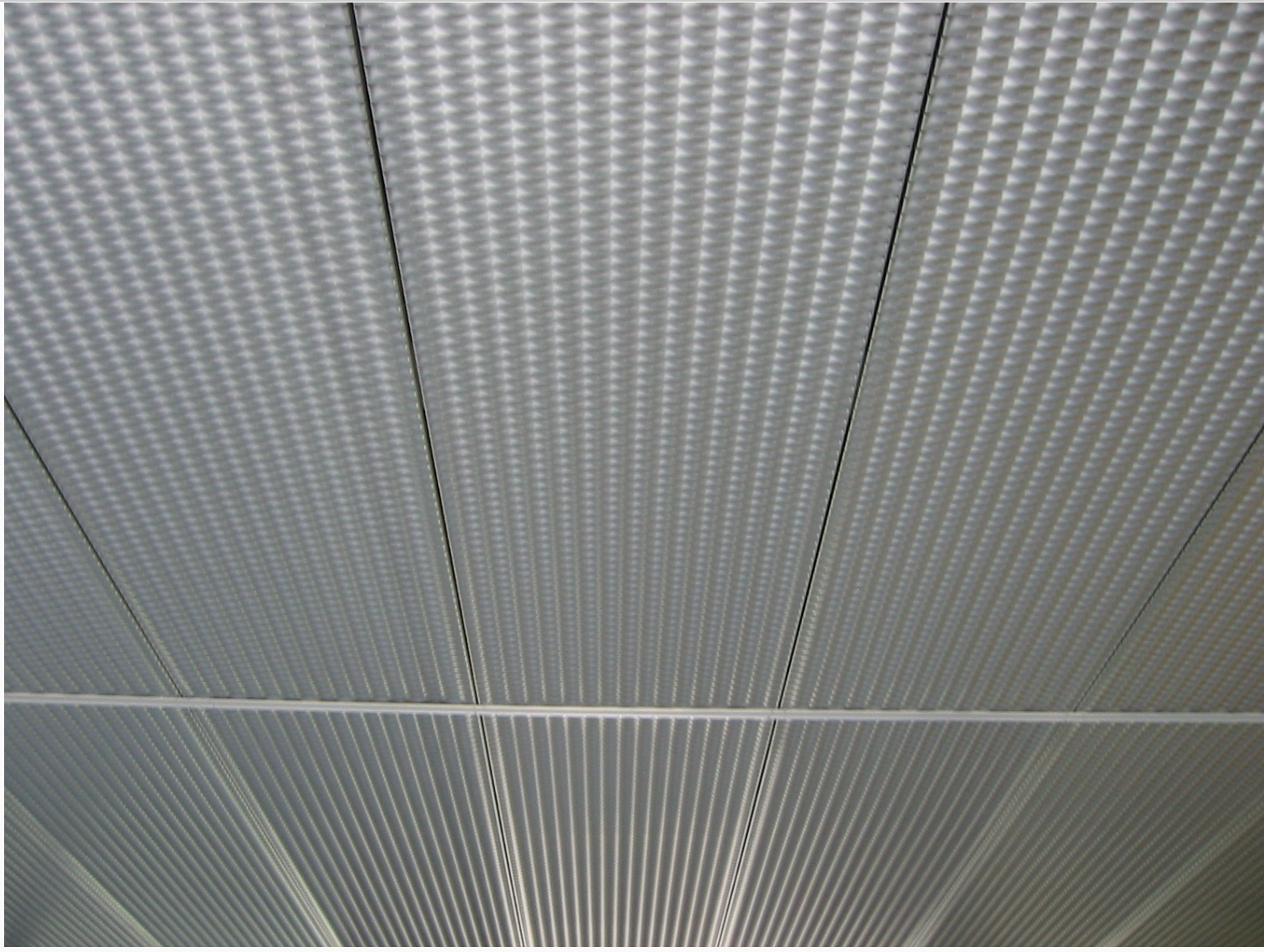

Changing mesh direction alters light reflection and visual appearance
-

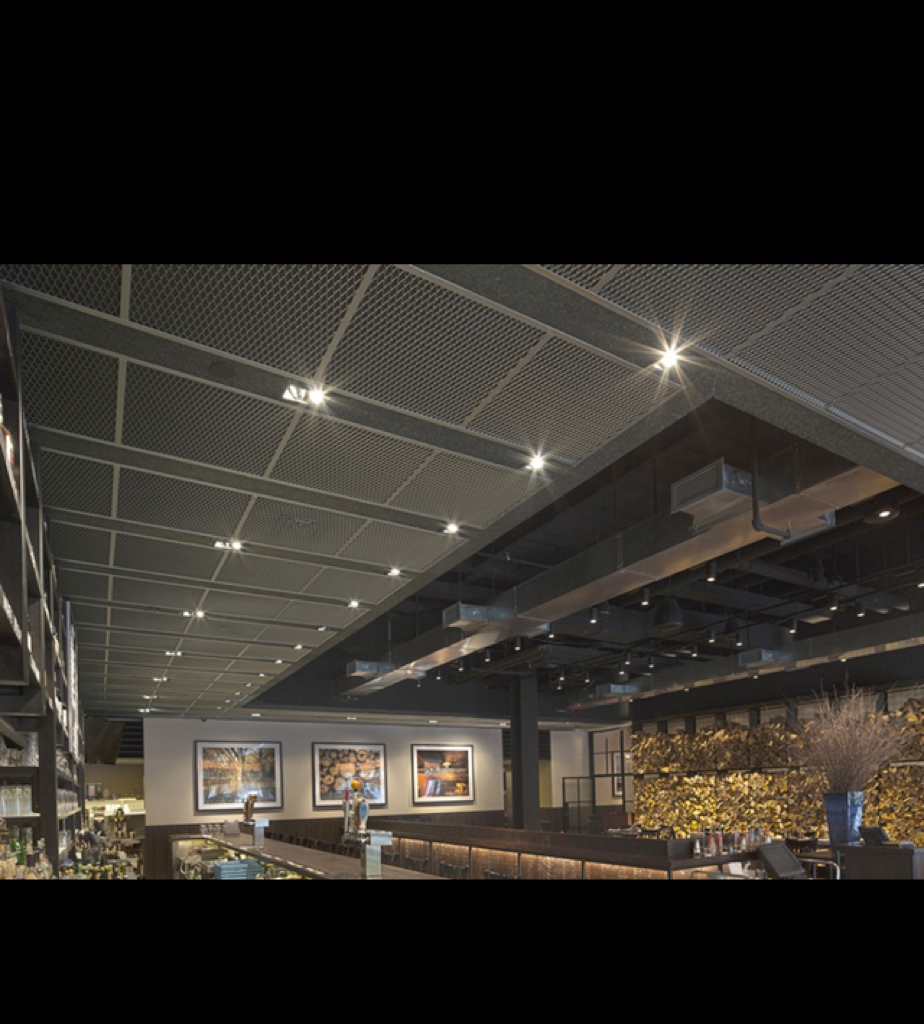

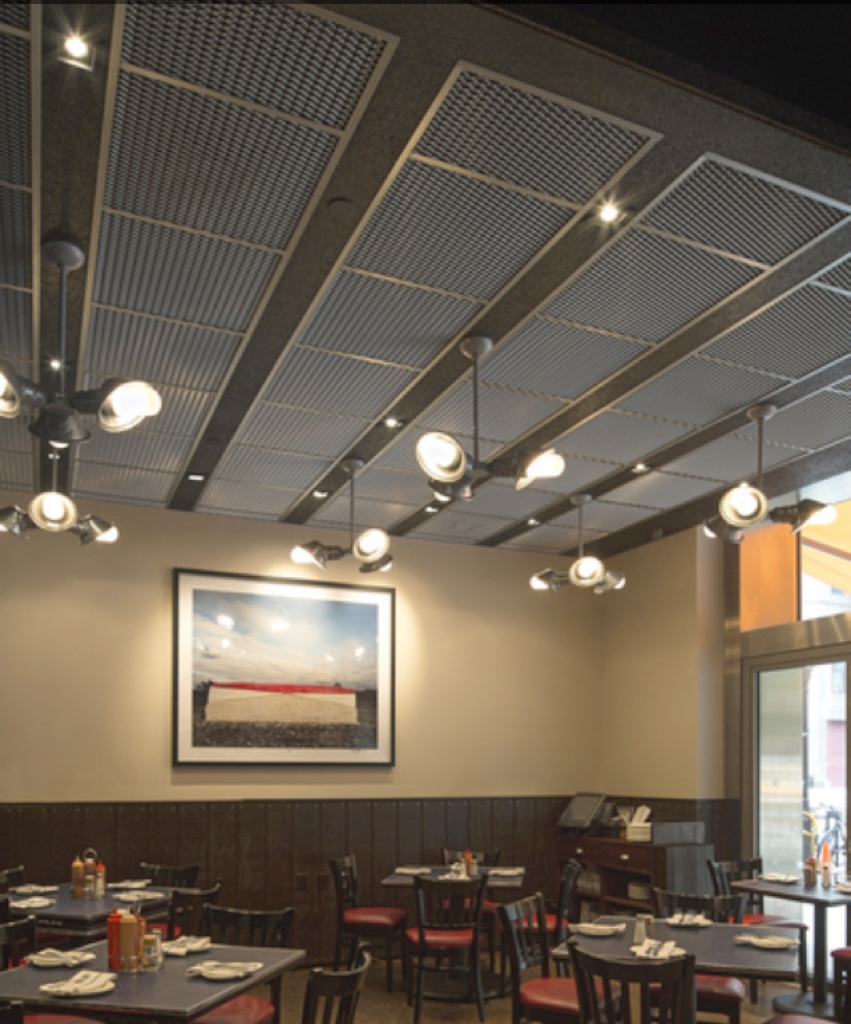

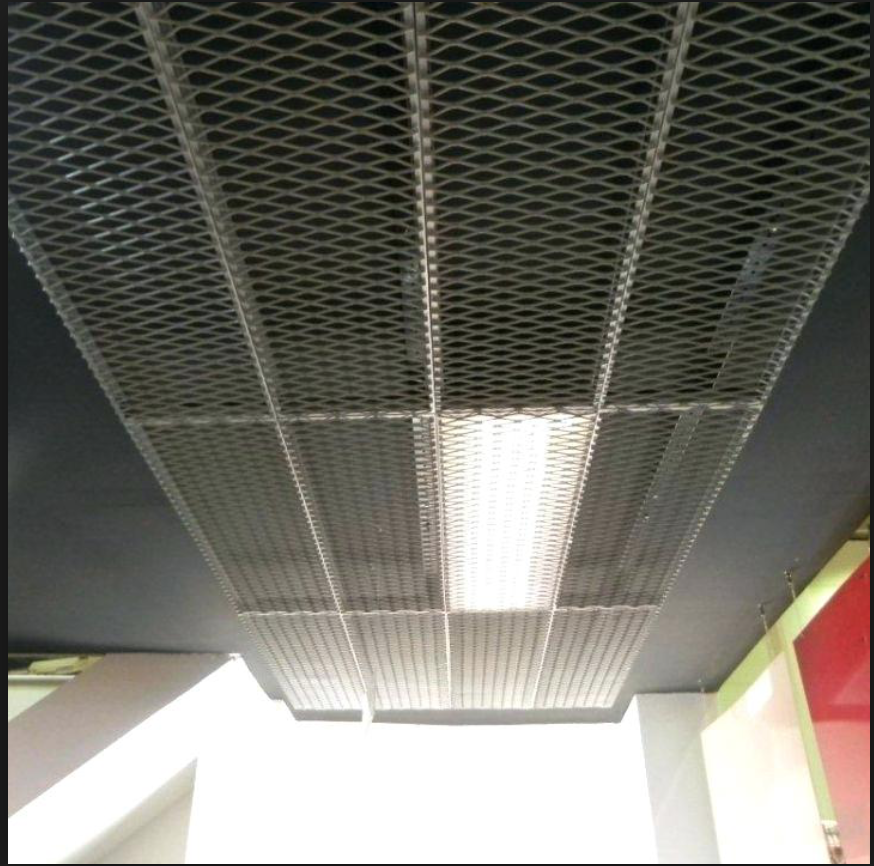

Luminaires installed above the mesh create dramatic lighting and shadow effects
This flexibility enables architects and designers to craft visually dynamic and functional spaces.
Colours & Finishes
-
Available in a wide range of RAL colours with short lead times
-
Special metallic finishes and chrome options available
-
Panels, grids, Bandraster profiles, and edge trims can all be supplied in matching colours for a seamless ceiling appearance
Quality Assurance
Our commitment to quality control ensures the highest standards in materials, manufacturing, and finished products. The exceptional durability of Asian Streck Metals systems results in longer service life, reduced maintenance costs, and superior life-cycle value.
All processes are certified to NABCB QM016 / ISO 9001:2015 standards.
Proven Fire Protection
All ASM Stretchmet Ceiling systems achieve high fire reaction classifications in accordance with EN 13501-1, based on official fire testing.
Ceiling Systems
Tiles
-
600 × 600 mm Lay-in
-
625 × 625 mm Bandraster
-
1000 × 1000 mm Bandraster
Planks
-
Corridor systems
-
Bandraster systems
-
C-grid systems
Planks are custom-manufactured with:
-
Maximum width: 500 mm
-
Maximum length: 2800 mm
Custom Design Solutions
Bespoke solutions are available for unique architectural requirements:
-
Special-sized panels – Custom reinforced profiles enable wider and longer spans
-

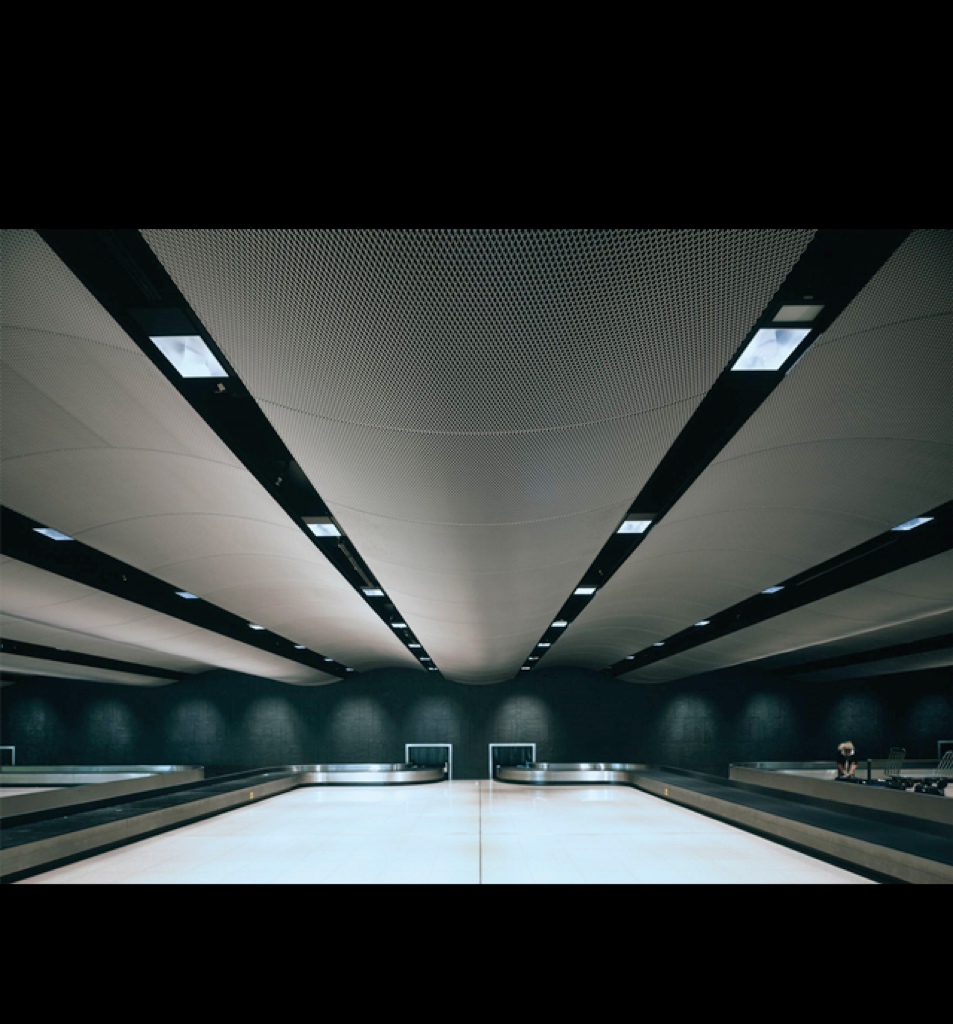

Curved panels – Custom curved profiles allow concave, convex, and wave-shaped ceiling designs
Acoustic Performance

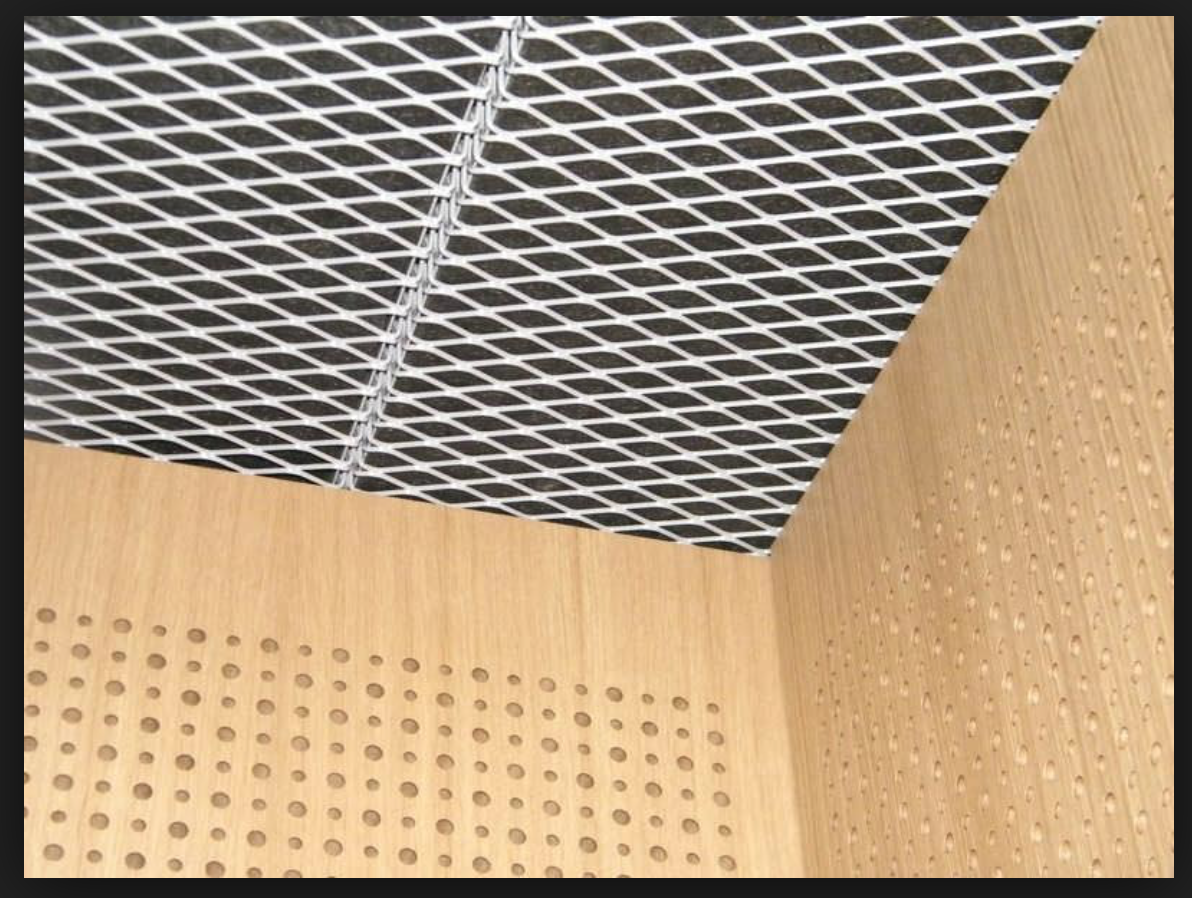

Stretchmet ceiling panels combined with acoustic backing pads deliver exceptional sound absorption. Pad thickness can be selected based on required acoustic performance, with absorption values reaching up to αw = 1.0 using 85 mm acoustic pads.

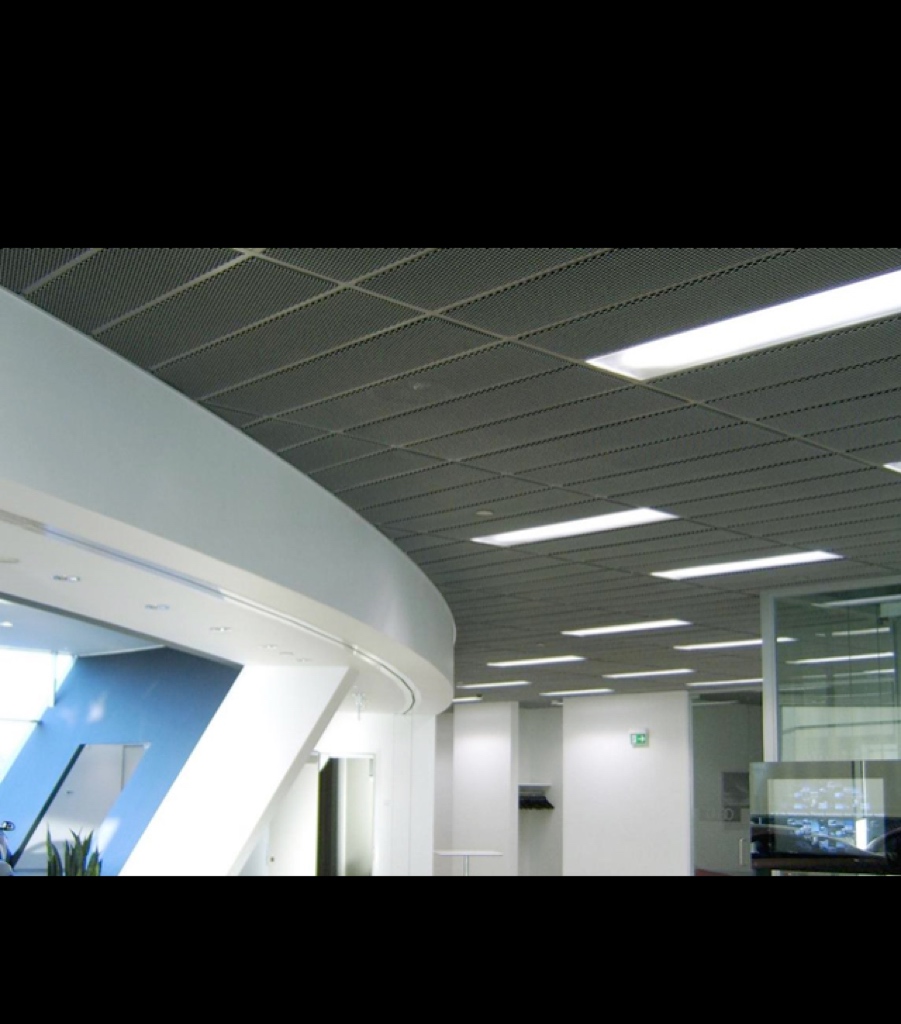

ASM Stretchmet Ceilings – Lay-In Tile Systems
Description

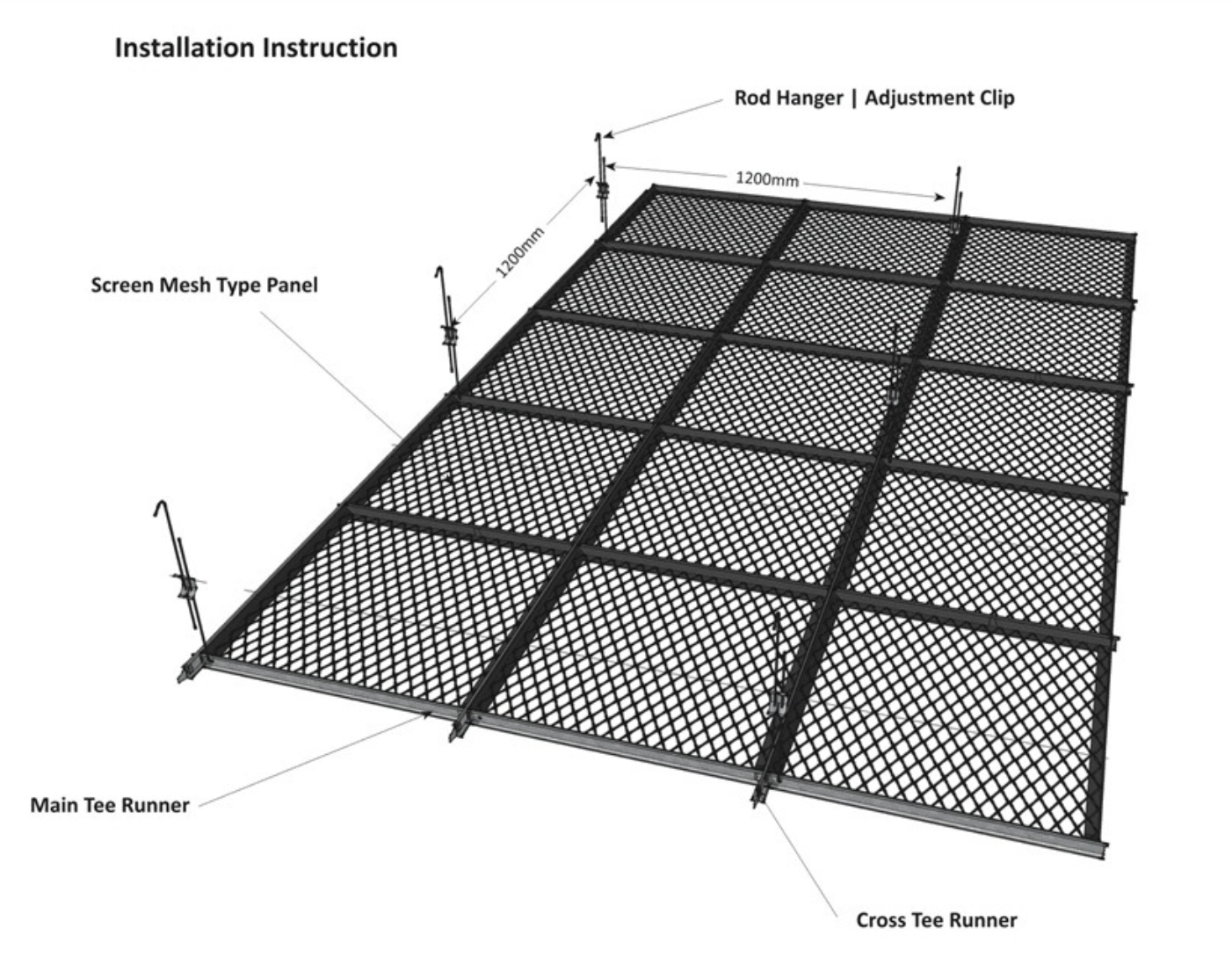

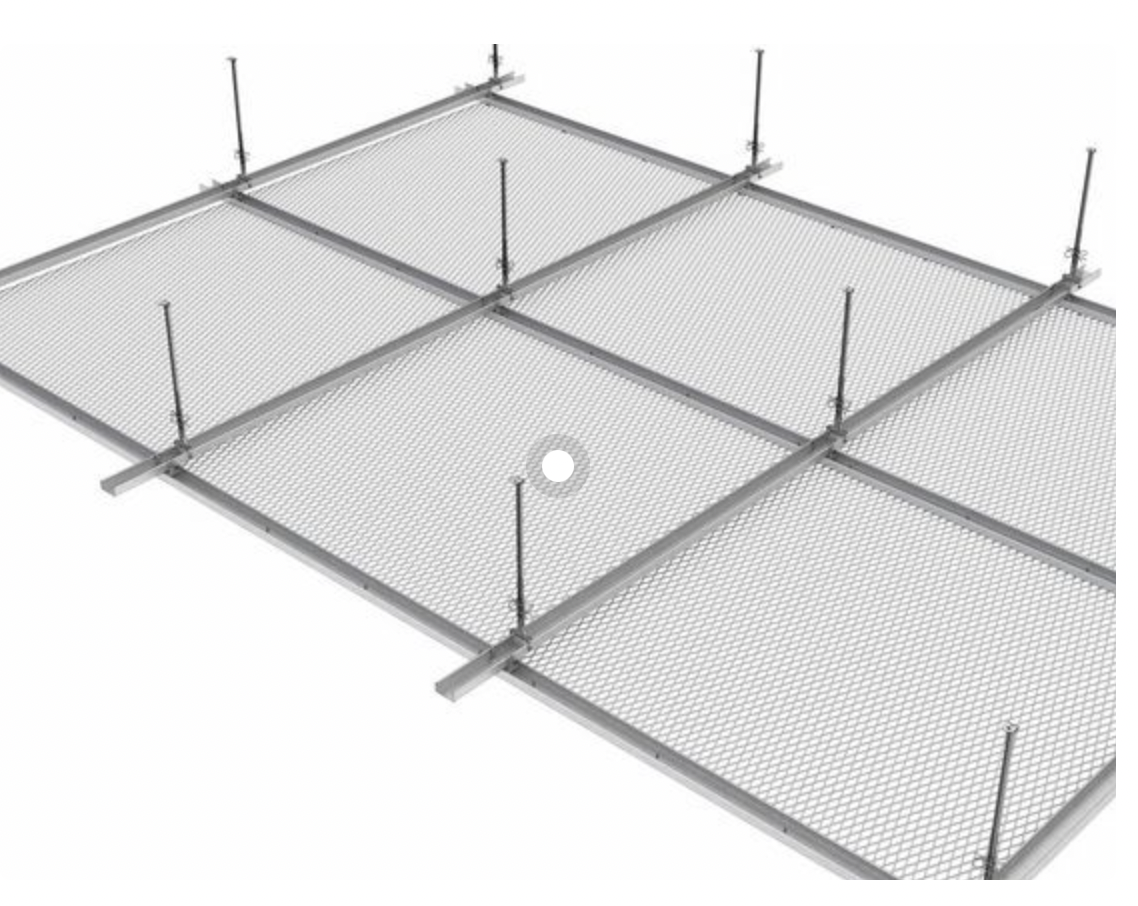

ASM Stretchmet Ceiling Lay-In tiles are designed for installation on conventional T-grid systems (15 mm and 24 mm T-bars) or Bandraster systems (50–100 mm). Tiles can be easily lifted upward, allowing quick access to the plenum without the need for special tools.
...Dimensions
| System Type | Grid / Reveal | Module Size |
|---|---|---|
| Lay-In Tiles 15/10 | 15 mm grid / 10 mm reveal | 600 × 600 mm |
| Lay-In Tiles 24/15 | 24 mm grid / 15 mm reveal | 600 × 600 mm |
| Lay-In Tiles 24/0 | 24 mm grid / 0 mm reveal | 600 × 600 mm |
| Lay-In Tiles Bandraster 50 mm | 0 mm reveal | 625 × 625 mm |
| Lay-In Tiles 15/10 Channel Grid | Integrated partition fixing | 600 × 600 mm |
| Lay-In Tiles Bandraster 100 mm | Steel only | 1000 × 1000 mm |
Material Requirement per m² (600 × 600 mm Module)
| Component | Unit | Quantity |
|---|---|---|
| ASM Stretchmet Metal Tiles | pcs | 2.78 |
| Grid Profiles | lm | 3.34 |
| Suspensions | pcs | 0.69 |
ASM Stretchmet Ceiling – Plank Systems
Short System Description

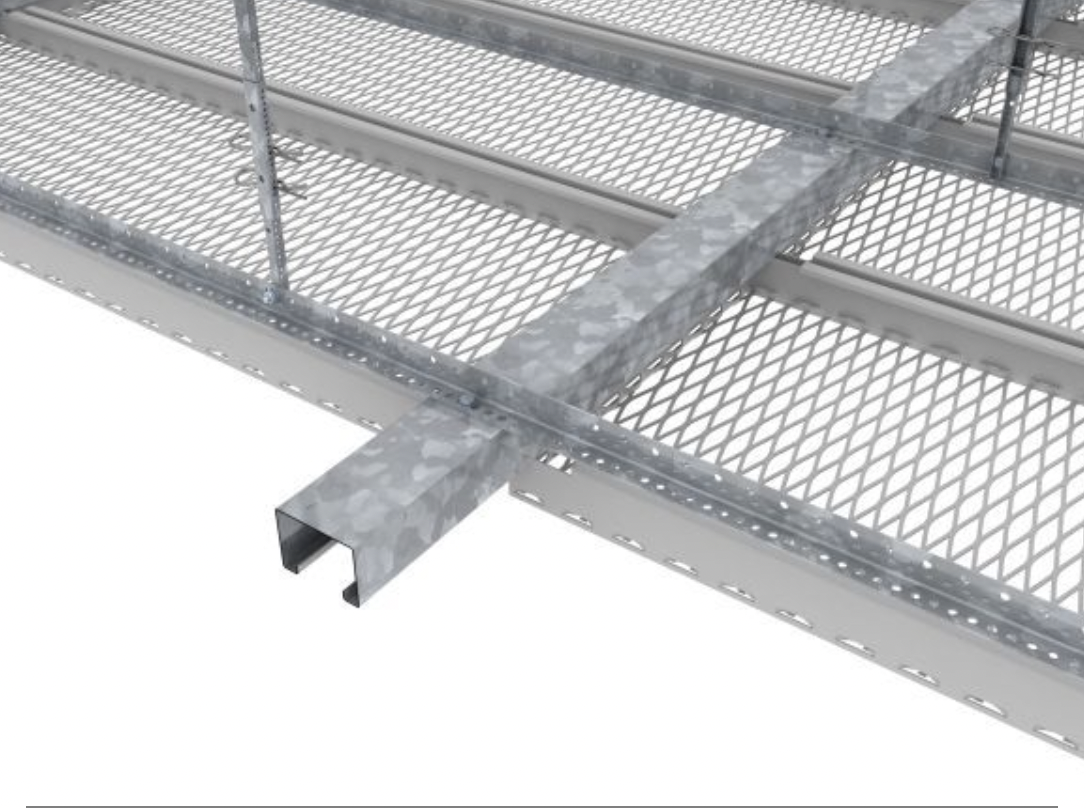

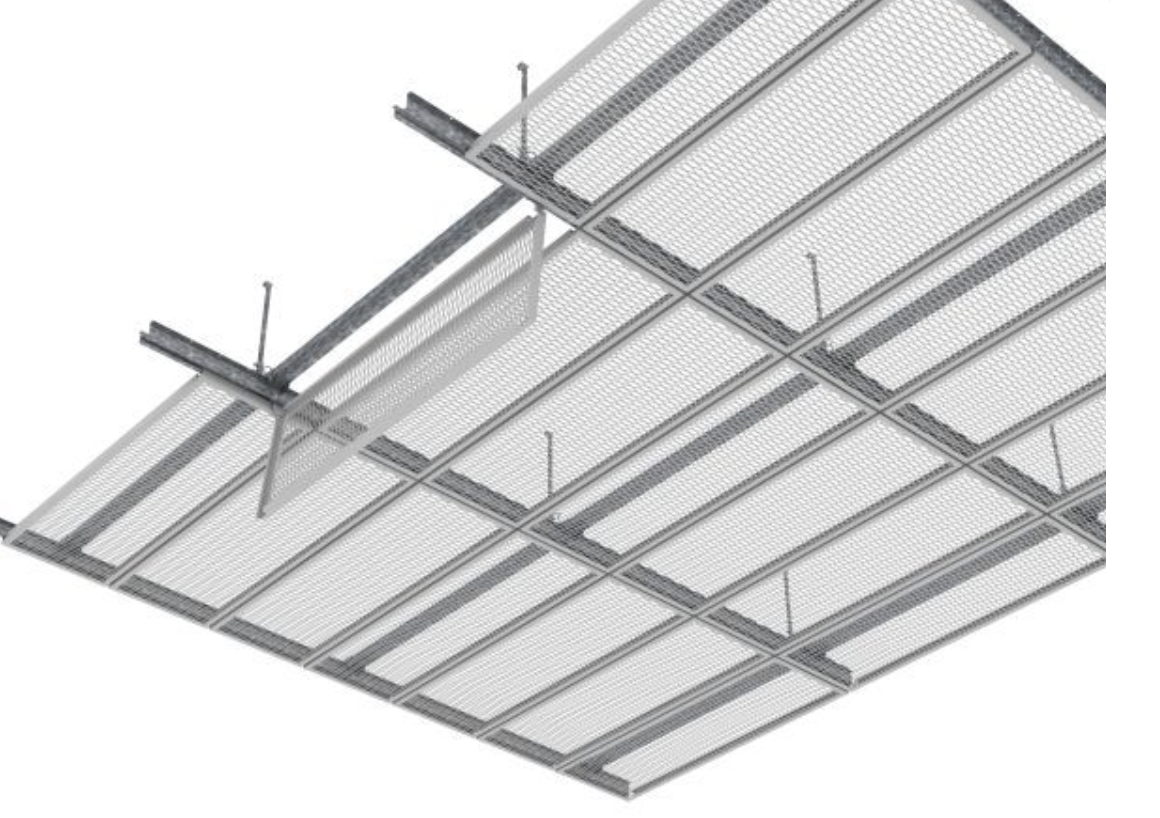

ASM Stretchmet Ceiling steel planks are designed for installation on conventional C-grid systems, Bandraster systems, and wall profiles. The planks can be easily lifted and removed without tools. These panels are lightweight, strong, fully recyclable, and ideal for modern architectural ceilings.
...
